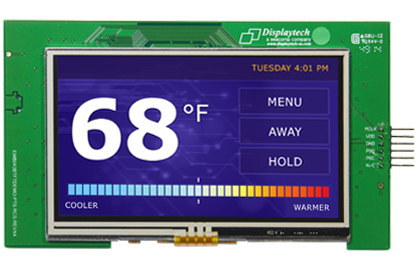

4.3" TFT Embedded Demonstration Board
Request a Quote
4.3" TFT Display Demo Board with Microchip PIC24 MCU
The Displaytech EMB043TFTDEMO is a demonstration and development board for the Displaytech DT043BTFT 4.3 inch color TFT display. The display is controlled by a Microchip PIC24FJ256DA210 microcontroller with integrated graphics controller. Furthermore, the demonstration board includes on-board external SRAM for extra frame-buffer memory as well as SPI flash for storing fonts and images.
Technical Overview
| Display Size | 4.3 inch |
| Display Resolution | 480 x 272 |
| External Connectors | Mini USB 2.0 and 6-Pin header for Microchip PICKit 3 |
| Microcontroller / Graphics Controller | Microchip PIC24FJ256DA210 |
| External SRAM Size | 512 Kb |
| External SPI Flash Size | 2 MB |
| Power Supply Voltage Required | 5V (from USB) |
| Module Size (w x h) | 5.25 x 3.5 in |
| Operating Temperature | -20 ~ 70°C |
