INT070ATFT
7" Integrated TFT Driver Board
Request a Quote

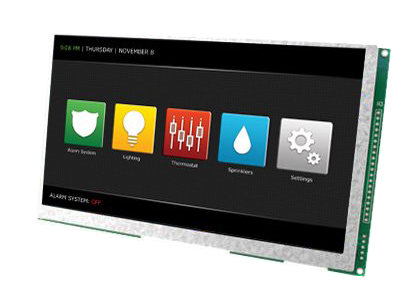

LCD Driver Board with Mounted 7" TFT Display

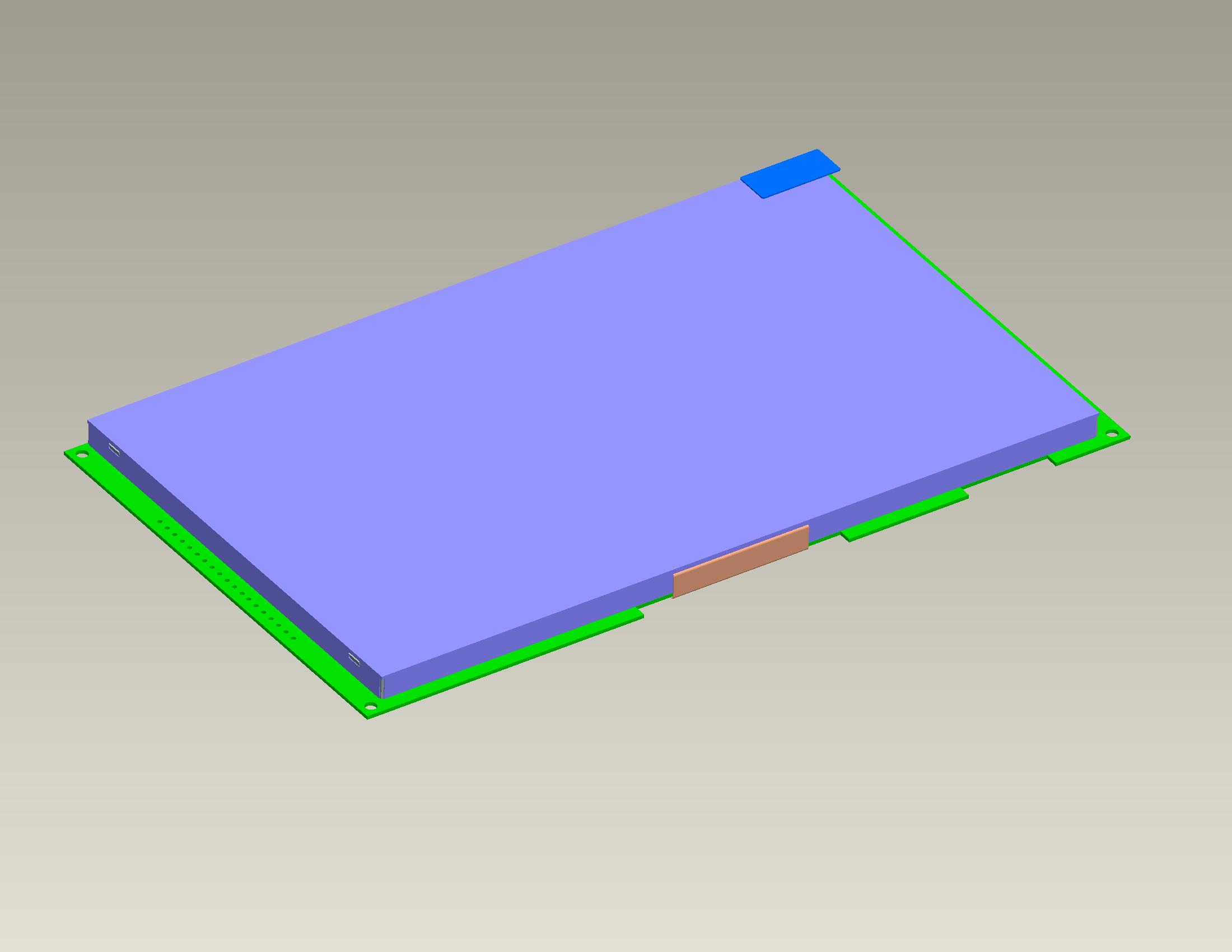

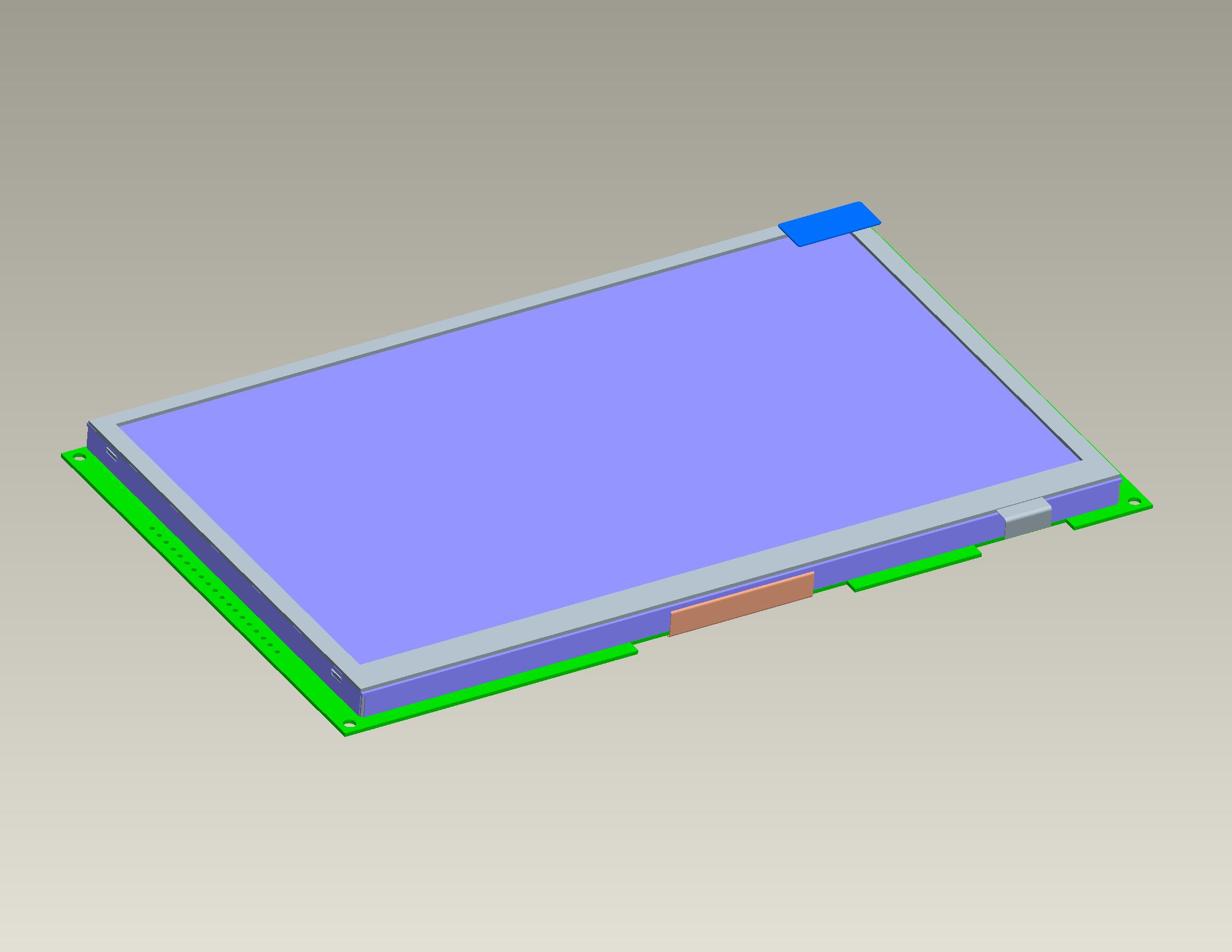

INT070ATFT and INT070ATFT-TS are embedded display driver boards based on the Displaytech 7 inch 800 x 480 RGB resolution TFT display module. This embedded driver board includes a 7" standard or resistive touchscreen display. Mounted on the embedded board is the Solomon Systech SSD1963 LCD controller that supports common RAM-less LCD drivers and offers the following features and benefits:
- 8080/ 6800 MCU Interface
- Built-in 1215K byte Frame Buffer
- Screen Display Rotation
- Vertical Scrolling
- Display Mirroring
- Programmable Contrast and Color Saturation Control
- Auto-Initialization of TFT Display
- Embedded 4-wire Resistive Touch Panel Control
- Built-in Clock Generator
- Dynamic Backlight Control via PWM Signal
- Deep Sleep Mode for Power Saving
Technical Overview
| Display Size | 7.0 inch |
| Display Resolution | 800 x 480 |
| Viewing Angle | 6 o'clock |
| Interface Type | 8080 or 6800 MCU |
| LCD Controller IC | Solomon Systech SSD1963 |
| Module Size (w x h) | 175 x 103 mm |
| Operating Temperature | -20 ~ 70°C |
| Touch Screen Option | 4-Wire Resistive Touchscreen |
